Launch X431 PAD V (PAD 5) Universal Diagnostic System with Smart Box 3.0 with ADAS Calibration Supports ECU Programming

1. Online programming +26 service functions.
2. Global version, no IP blocking problem.
3. Free Update Online for 2 Years, subscription is 399USD/yr after 2 yrs.

Launch X431 PAD V (PAD 5) Universal Diagnostic System with Smart Box 3.0 with ADAS Calibration Supports ECU Programming

Launch X431 PAD V Scanner Highlights

ADAS calibration Supported
Advanced ECU programming & coding
VW & Audi Guided Functions
Compatible with J2534 & DoIP
26 Bi-directional Special Service Functions
supports LAUNCH extension module applications for oscilloscopes, sensors, endoscopes, multimeters, and battery detection etc.

X431 PAD V Features:

1. Android 7.1 customized system, Qualcomm 8-core processor, 10.1 inch capacitive touch screen, support QC3.0 fast charging.

2. 2.4GHz & 5GHz Dual-Frequency Wi-Fi, the transmission rate is faster than the previous generation.

3. Support commercial vehicle and passenger car diagnose, Support J2534, CAN FD, DoIP.

4. Wide mode coverage, powerful and a large number,of diagnostic functions, and accurate test data.

5. Brand new industrial design, with soft rubber sheath on the four corners of the product, to effectively prevent collision; damping shaft, free adjustment of nearly 180 degrees; support three modes of hanging, support and normal.

6. Full vehicle system coverage for over 110 brands in the world, which is continually updated

7. Full-function scan tool for both 12V cars and 24V 36V heavy duty (heavy duty need to purchase additional software)

8. Online Programming:
BMW, Mercedes, VW, Audi, Seat, Skoda, Porsche, Nissan, Infiniti, Subaru
LAUNCH X431 PAD V supports SCN coding until the 2020 model!

9. Multi-Language:
Italian English Chinese German Japanese Russian French Spanish Portuguese Polish Turkish Dutch Greek Danish Arabic Korean Persian Finnish Swedish Romanian Czech Hungarian

10. Update:
Free Update online for 2 years. It takes $399 annual upgrade after that.

11. Support some car makes coverage till 2020, incl. Benz, Fiat, BMW, Audi, Skoda, VW, Citroen, Land Rover, Jaguar, Smart, Peugeot, Porsche, Volvo, Honda, Toyota, Nissan, Hyundai, Kia, Subaru, Ford

Launch X431 PAD 5 Functions:

1. Comprehensive diagnosis: Support full-make, full-system, full-function rapid diagnosis, read DTC, clear DTC, read data stream, actuation test, etc.

2. Intelligent diagnose: Support intelligent VIN identification and cloud-based diagnostic record query, making the diagnostics more intelligent and efficient.

3. Local diagnose: When the intelligent diagnosis is not available in an environment without network, choose traditional diagnosis. Select the vehicle make and model manually to perform the vehicle detection.

4. Remote diagnose: Support online real-time communication and remote diagnostic service through text, picture, and file between device and device, and between device and remote desktop, with low network bandwidth and system resources occupancy.

5. Special function: Support total 16 special functions, including service lamp reset, throttle adaptation, steering angle reset, brake pad reset, tire pressure reset, anti-theft matching, ABS bleeding, battery matching, gear learning, injector coding, DPF regeneration, sunroof initialization, headlamp matching, suspension matching and AT matching, EGR Adaption.

6. Software upgrade: Support one-click upgrade of operation system, client side, car model software and firmware.

7. Diagnostic feedback: For model software and function errors met during the use, please submit the feedback immediately. LAUNCH will response as soon as possible.

8. My report: View comprehensive diagnostic report, remote diagnostic report, and data stream playback.

9. Settings: Contains my connector, diagnostic connector connection management, connector activation, firmware repair, etc.

10. Extended module: Support oscillograph, sensor, battery test, endoscope, Wi-Fi printer, etc.

11. Guided function for VW and Audi

12. 26 special service functions available

13. ADAS calibration function is optional

14. Support USB Type C & Type A

Diagnostic Mode:

1. In-depth diagnostics: Supports system diagnostics, full special functions, reading and clearing errors, viewing data stream, activating the system on the vehicle, …
2. Smart diagnostics: Automatically identify VIN and check information on the server, making diagnostics smarter and more efficient.
3. Local diagnostics: When there is no internet, the manual vehicle selection is also very easy.
4. Remote diagnosis: using Teamviewer software to connect the Garage with technicians for technical support.

Service function list

Vehicle type: Passenger vehicle, Heavy duty (equipped smart box 3.0)
System diagnosis: Access all module in all module
Remote diagnosis Yes
Guide function Yes
Programming Yes
TPMS Service Yes
ADAS Calibration Optional
Service function 26
Break pad reset Yes
Battery matching Yes
Steering angle reset Yes
Throttle adaption Yes
DPF reg. Yes
ABS blake bleeding Yes
Anti theft matching Yes
Tire pressure reset Yes
Injector coding Yes
Gear learning Yes
Sunroof initialization Yes
Headlamp matching Yes
Suspension matching Yes
AT matching Yes
EGR adaption Yes

X-431 PAD V Parameters:

Processor: 8 core Cortex-A53 2.0GHz
Cache: 4GB
Hard Disk: 64GB, 128G extended
System: Android 7.1
Screen: 10.1 inch full-fitting, sunlight readable screen (Gorilla Glass)
Resolution: 1920*1200
Wi-Fi: Support 2.4GHz&5GHz dual frequency
Camera: Rear13 Megapixels, front 8 Megapixels
Diagnostic Mode: Wi-Fi
Work Temperature: -10 ~ 50℃
Dimension: 320×211×46mm

SmartBox3.0

Smart Box 3.0, the new VCI with Linux system, supports USB, Bluetooth and WiFi connection, is comptibnle with CANFD, DoIP, J2534 and other diagnostic protocols. More powerful functions to be discovered by working with X-431 PAD V.

The VCI “SmartBox3.0”, which can only be used with PAD V, supports up to 36 volts.

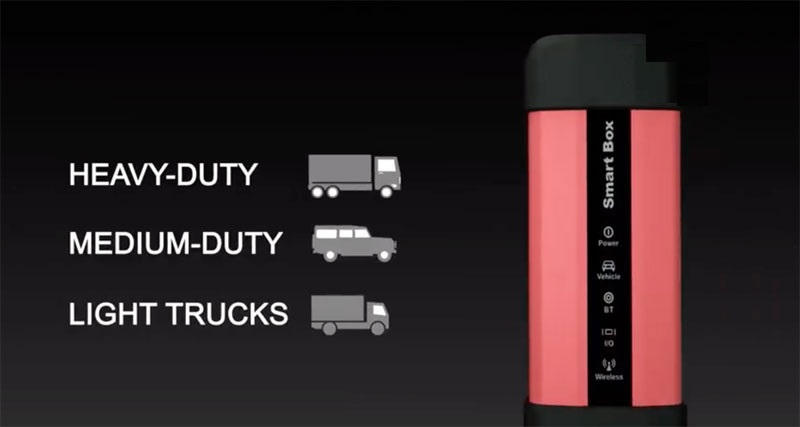

Smart box 3.0 supports heavy-duty, medium-duty, light trucks. (Require extra software payment for heavy-duty models)
Smart box 3.0 covers all diagnostic protocols, J2534, D-PDU, RP1210, CAN FD, DoIP.

Parameters:

Smart box 3.0 connection:
Smartbox3.0 comes with a USB cable.
One end of Smartbox3.0 is connected to the USB cable: one port of the USB cable is connected to Smartbox3.0; the other port is connected to a USB port of a PC; the other end of Smartbox3.0 is connected to the OBD interface bus, and the other port of the bus is connected to the OBD connector.

Extension optional modules:

. Endoscope
. Sensor box
. Multimeter
. Battery tester
. Scope box
. WiFi printer

Passenger vehicles (12V):

1. Australian: AUST Holden, AUST Ford

2. Asian: Toyota/Lexus, Honda/Acura, Mazda, Subaru, Nissan/Infiniti, Mitsubishi, Hyundai, Isuzu, Daihatsu, KIA, Daewoo, Suzuki, Proton, Tata, Mahindra, Ssangyong, Perodua, Maruti

3. European: Audi, Mercedes/Maybach, BMW/MINI/Rolls Royce, VW/Bentley/Bugatti, Opel/Vauxhall, Peugeot, Citroen, Volvo, Sprinter, Renault/Dacia, Fiat/Romeo/Abarth/Lancia, Rover, Landrover, Saab, Seat, Skoda, Smart, Maserati, Ferrari, Arston Martin, Porsche, Jaguar

4. USA: USA Ford/ Lincoln, GM/ Buick/ Cadillac/ Chevrolet, Chrysler/ Dodge/ Jeep

5. Chinese: Changcheng(Great Wall), Geely, Qirui_TY(Cherry), Futian, Changan, Changhe, Haifei ….etc.

6. Special: Immobilizer/Key, Injector, Reset Brake Bleed, Reset TPMS, Electronic Throttle Relearn, Reset DPF, Reset SAS, Reset Oil, Reset Brake, Reset BMS

7. Others: EOBD, Demo

Heavy Duty Truck Vehicles (24V) (Need to Purchase Heavy Duty Software):

Software Coverage:
Nissan (Diesel)
Mitsubishi (Diesel)
USA Ford Diesel, Kenworth
Astra, Benz Heavy Duty, Bosch Diesel, China Heavy Duty, Cummins Heavy Duty, DAF, Delphi Diesel
Denso Diesel, FAW Liberation, Foton Auman, FUSO, Hino, Hyundai Heavy Duty, Isuzu Heavy Duty
Iveco Heavy Duty, JAC Heavy Duty, Mack , MAN , OBD Heavy Duty, Scania, Shangchai Diesel, Volvo Heavy Duty
WP Diesel, Airbus, Allison Transmission Box, Ashok Rejlander, Bendix ABS, Caterpillar Heavy Duty
Chai Heavy Vehicle, Chaoyang Diesel, Construction Machinery, CREDO Heavy Vechicle, Detroit Engine
Dongfeng Commercial Vehicle, Dongfeng Yufeng, Doosan Engine, Freightliner Heavy Duty Truck
Full Diesel Diagnosis Software, Haldex ABS Heavy Duty, HD_ABS System, HD_GoldenDragon, HD_International
HD_Kinglong, HD_Maxxforce, HD_Tata, HD_Western_Star, Heavy Truck Presentation Software
IRISBUS HD, IRIZAR HD, NEOPLAN HD, Peter HD, Renault HD, SETRA HD, Stannic Bavin, Sterling HD
Sunlong Bus, Sunwin Bus, UD Trucks 2F Nissan Diesel, WABCO ABS, Yang Chai Engine

Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

How to Update Launch X431 PAD 5?

Run “SmartBox Tool 3.0” on the Windows desktop after installing “SmartBox_3.0_Setup”.

3.1 Firmware Upgrade Function
SmartBox 3.0 can be upgraded through SmartBox Tool 3.0. Please select “M7 Upgrade” for the upgrading of lower programs and “A7 Upgrade” for the upgrading of the system. Click “Browse” to select the path for storing upgrading files and click “Upgrade”.
Note: Restart the software and SmartBox 3.0 upon completion of the upgrade. You can check the version to confirm whether the upgrade is successful.

3.2 Log View Function
When necessary, you can enable “Write Log File” or “Window Print Information” function to record the test status of SmartBox 3.0 and the process. To avoid software errors due to overlarge log files, do not enable the function if it is not necessary. The log files are saved under the root directory of disk C by default.
Steps: The corresponding J2534Log information can be generated by ticking the “Write Log File” option after clicking “View Log” in the upper left corner of the software interface, as shown below:

Note: Please restart the diagnostic software!
Note: If the log printing function is enabled, the log files may be very large as the information are written accumulatedly. Please enable this function when necessary, such as development and debugging. In other cases, please do not activate this function option at will.
The default storage path of the log file “J2534Log” generated is: C:\Program Files\SmartBox 3.0\SmartBox 3.0\Log\ J2534_LOG.txt, as shown below:

Also note: In some computer systems, users have no write permission to this file folder, resulting in unsuccessful log file generation. It is necessary to modify the permissions of this folder (requiring administrator privileges), as shown below:

Right-click the “Log” folder, select the “Attribute” option and find the “Security” attribute, select current user, click “Edit”, select the corresponding user name again, and tick all the “Allow” options in the permission column (requiring administrator rights), and click “OK” to go back.

Launch X431 PAD V 5 Package List

1 x X-431 PAD V main unit
1 x X-431 PAD V charging dock
1 x Smartbox 3.0 diagnostic connector
1 x Micro USB cable
1 x Cigarette lighter cable
1 x 5V DC out power adaptor
1 x Battery clamps cable
1 x OBD II extension cable
1 x Non-16pin connector converting cabel
1 x Password envelope
1 x Non-16pin connectors set
