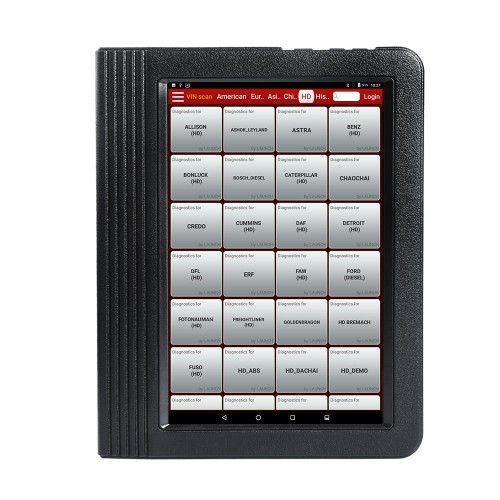

New LAUNCH X431 V+ and HD3 HD III Module Heavy Duty Truck Diagnostic Tool for 12V 24V Trucks

LAUNCH X431 V+ and HD3 HD III Module Heavy Duty Truck Diagnostic Tool for 12V 24V Trucks

Launch X-431 V+ HD3 is a modified version of the multi-brand scanner Launch X-431 Pro which, in its new edition, received a more powerful tablet and a diagnostic function for heavy duty vehicles. The device includes all the advantages of the Pro series and is presented with advanced diagnostic algorithms that allow you to quickly and deeply test the car. The complete set HD – is intended for trucks diagnostic.

The HD package is a set of Launch x431 V+ plus the diagnostic module of trucks Launch HD Box 3.0, it turns out cheaper than buying everything separately.

X-431 V+ is a brand new advanced automotive fault diagnostic tool based on Android system. It passes on Launch advantages in automotive fault diagnostic technology, such as wide Car and Truck model coverage, powerful function, abundant special function and accurate test data, etc.

X-431 V+ and HD3 achieves full diesel truck model and full system fault diagnosis through the Bluetooth communication between Data Link Connector (DLC) and smart mobile terminal.

Note:
1). The HD module must work on any of the x431 v plus or pro3 or pad ii account which old customer have purchased before and have been activated by LAUNCH already.
If not have the x431 v plus or pro3 or pad ii account, this HD module alone cannot be activated and the diagnostic software cannot be downloaded from LAUNCH official website. Thank you for your understanding.

2). The Package supports 12V to 24V diesel truck only. If you need to diagnose both gasoline and diesel vehicles, choose this pacakge: SP184-293-B

Main Features:

1. Wireless Bluetooth Diagnosis
Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.

2. Support various car models:
34 car brands software, support more than 60 car models. Moreover, the software is being continuously developed.

3. Industrial shockproof design
Industrial shockproof design is perfect for the working environment in repair shops.

4. Various configurations are available for selection
Suppose you are going to purchase heavy-duty truck diagnostic tool, you must choose X-431 V+, X-431 PRO3 or X-431 PAD II as host machine. If you have already bought X-431 V+, X-431 PRO3 or X-431 PAD II gasoline configuration, now you want to test truck, just buy a heavy-duty truck module.
5. Full comprehensive diagnostic software functions.

6.Wide diagnostic software coverage. Accurate test data.
Software based on Android, matching with more diagnostic hosts

7. 1 Year Free Update Online.

8. Multi-language

Host parameter:

CPU: 1.4GHz quad core
Operating system: Android 7.1
Memory: 2G
Storage: 16GB, support 128G expansion
Display: 10.1-inch capacitive screen
Screen resolution: 1280×800
Camera: 5 million pixels behind
Weight: about 0.50 kg
Size: 264x210x30 (mm)
Working temperature: -10 ° C ~ 50 ° C

Diagnostic box parameters
CPU: 120MHz
Power consumption: ≤3W
Working voltage: DC 9-36V
Working temperature: -10 ° C ~ 50 ° C
Communication method: USB+ Wi-Fi+ Bluetooth
Size: 204x110x45 (mm)

Product Features：

Intelligent diagnosis: In the state of networking, it can automatically identify vehicle information and complete rapid diagnosis. It can also check the history record of vehicle maintenance online, which is the first in the industry;

Remote diagnosis: The self-developed and patented IM remote diagnosis technology can be quickly accessed remotely through terminals such as mobile phones, tablets, computers, etc., and the network broadband and system resources occupation rate is low;

Diagnostic feedback: In the process of using the vehicle and function abnormalities under special circumstances, you can feedback the problem to Yuanzheng Company, and there will be special technicians to track and handle it;

Maintenance information: More than 1600 models, more than 10,000 GB of maintenance database, including online video, circuit diagram, maintenance manual, maintenance cases, operation skills, etc., online inquiry at any time, can also provide detailed fault code help, improve diagnostic efficiency;

Traditional diagnosis: When in a network-free environment, intelligent diagnosis cannot be used. At this time, traditional diagnosis can be selected, and the vehicle and vehicle models can be manually selected for vehicle fault detection.

Diagnostic record: record the local vehicle maintenance record, you can check the vehicle record that the machine has diagnosed, and you can quickly enter the system of the vehicle for detection when it is diagnosed again;

Software upgrade: support one-click upgrade of operating system, client, model software and firmware;

Personal Center: Personal data center, including my report, my connector, diagnostic connector connection management, connector activation, firmware repair, personal information, modify user password, settings, etc.

Diagnostic system

Engine diagnosis: support Chaochai, Dachai, Laiyang Power, Quanchai, Shangchai, Weichai, Xichai, Yangchai, Yuchai, Yunnei Power, Cummins, Xinchen Power, Chaochai Xinfeng, Great Wall Xinfeng, Doosan, Huayuan Lai, Platinum, Isuzu and other engine systems;

Natural gas diagnosis: support Cummins natural gas, Nanchong natural gas, Shangchai natural gas, Weichai natural gas, Xichai natural gas, Iveco natural gas, Yuchai natural gas, heavy gas natural gas, Chaochai natural gas, Yunzhong natural gas system, etc.;

Post-processing diagnosis: support Guangxi Sanli tail gas post-treatment, Tenneco post-treatment, Kailong post-treatment, Tianlan DCU, Bosch post-processing system diagnosis, etc.

Calibration function: support Chaochai calibration, Dongfeng Renault calibration, Cummins calibration, Shangchai calibration, Weichai calibration, Xichai calibration, Yuchai calibration, heavy truck calibration, Yangchai calibration, etc.;

ECU brush writing: support Bosch ECU brush writing, Nanyue single pump ECU brush writing, Bosch bottom layer brush writing, natural gas ECU brush writing, electric ECU brush writing, Delphi ECU brush writing, China National Heavy Duty Truck ECU brush writing, Tenneco DCU Wait;

ABS system: WABCO ABS, Delphi ABS, Knorr ABS, Bosch ABS, Komi ABS, Localized ABS (liberation), Wanan ABS, SABS, Asia Pacific ABS, Hongding ABS, Wanan ABS (liberation), Yuan Feng Qingqi ABS, Wanan Qingqi ABS, Ford ABS, Wandu ABS, Jingxi Heavy Industry ABS, etc.;

Construction Machinery: Supports dozens of engineering machinery vehicle system diagnostics.

Applicable models

China: Dongfeng Commercial Vehicle, FAW Jiefang, China National Heavy Duty Truck, Futian Commercial Vehicle, Shaanxi Heavy Duty Truck, Jianghuai Commercial Vehicle, Hongyan Heavy Duty Truck, Beiben Heavy Duty Truck, Jinlong Bus, Xiamen Golden Passenger Car, Haige Bus, Wuzhou Dragon Bus , Yutong Bus, etc.;

Asia: Hino, Fuso, Isuzu, UD Truck, Hyundai Truck, Ashok Leyland, etc.;

Americas: Freightliner, IWC, Kenworth, Peterbilt, Sterling, etc.;

Europe: Mercedes-Benz commercial vehicles, Mann, Iveco, Volvo, Renault, Duff, Scania, Kamas and so on.
