New Launch X431 V+ Global Version Diagnostic Scanner and HD3 HD III Truck Module for Gasoline and Diesel Vehicles

Launch X431 V+ Global Version Diagnostic Scanner and HD3 HD III Truck Module for Gasoline and Diesel Vehicles

Launch X431 V+ Features
Online update free for 2 years
Supports about 69 car brands from USA, European, Asian and so on.
Supports wifi/Bluetooth connection
Multi-Language: English, Spanish, French, German, Japanese, Korean, Russian, Arabic
Allows you to print our diagnostic data with Wifi printer
Same working function as X431 PRO3

Launch X431 V+ Diagnostic Tool Instructions

Launch X431 V+ PRO3 is a typical diagnostic device contributed by Launch to diagnostic industry concerning Internet application. You can use X431 V+ to diagnose full car model and full system fault through Bluetoooth. Working Principle is Bluetooth communication between DBSCar connector and Android Tablet.

Launch X431 V+ PRO3 includes all Launch diagnostic tool ‘s advantages in car fault diagnostic technology, such as vast car model coverage, powerful test function, and other special function,accurate test data, etc.

Launch X431 V+ PRO3 supports 12V/24V gasoline(petrol) cars,12V for some diesel cars,not for trucks.

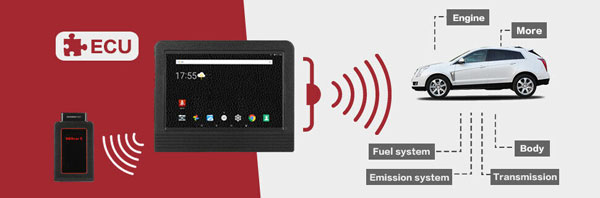

【Coding and ALL Systems Diagnoses】

ECU Coding and Auto VIN Tech

This diagnostic tablet supports ECU coding function on a large amount of vehicle models, including Ford and GM, VW, Honda, Toyota and more. It also supports identifying car’s information automatically rather than manually.

ALL Systems Diagnoses

To diagnose car comprehensively, it can read DTCs and data streams for ALL systems. For instance, Fuel system, Emission system, Transmission, Engine, Body, Powertrain and more. You do not have to buy other tools for diagnosing systems, saving you much time and money from a long term.

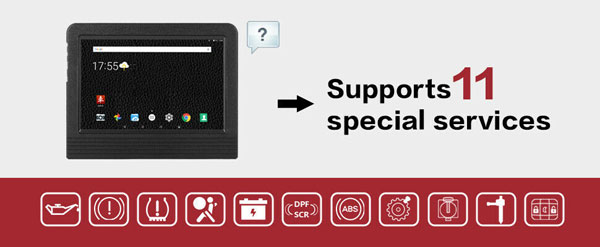

【Full Special Functions】

This diagnostic tool supports11 special services and complete OBD2 functions. The former includes:

l BMS service to reset battery management system;

l Oil reset to reset service mileage and service interval;

l Throttle matching to ensure communication with ECU after replacement;

l Injector programming to let new injectors function well;

l SAS reset to reset steering angle sensor;

l DPF service supports forced DPF regeneration and adjusting injectors;

l TPMS service to relearn TPMS sensors;

l EPB reset to reset new electronic parking brakes for braking wheels safely again;

l ABS brake bleeding to get a firm brake pad;

l Tooth learning to make new crankshaft be used and IMMO (Anti-theft matching) to finish keys coding.

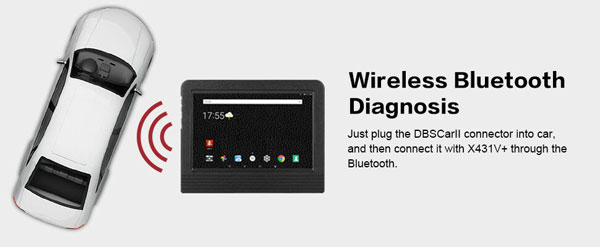

【Wireless Bluetooth Diagnosis】

Different from diagnosing the vehicle via diagnostic cable, this diagnostic scan tool offers the users with much convenience due to the supported Bluetooth connection. Just plug the DBSCarII connector into car, and then connect it with X431V+ through the Bluetooth. You are able to diagnose vehicles directly, either at your workbench or under the hood.

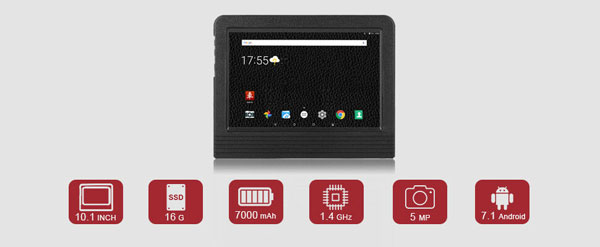

【Advanced Hardware】

You are able to use the diagnostic tool about 4-6 hours continually, which are supported by the 700mAh battery; you can get the ability to see different data in wave like form displayed on the screen at the same time because of the equipped 10.1-in supper touch screen; you can also find the malfunctioned parts directly and solve problems quickly by using this diagnostic tool with a advanced Android5.1 system.

【Additional Capabilities】

Besides various wonderful capabilities in OBD2 functions, special services and full systems diagnoses, this diagnostic tool – Launch X431 V+ provides you with many additional services to facilitate your diagnosis.

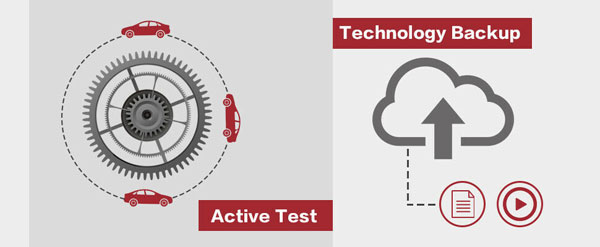

Active Test

Active test is to test output elements. You can figure out whether a specific subsystem or component in your car functions well or not by using this tool to make the tester outputs function instead of checking in ignition status.

Technology Backup

You can get remote control tech support from LAUNCH tech team by sending one-click recorded videos and accurate diagnostic results to them. Also, the one-click update online feature is quite convenient.

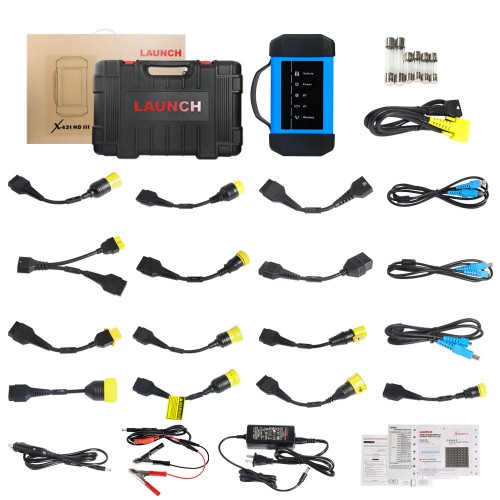

Launch X-431 HD III Truck Module

Launch X431 HD3 Functions

Identification of control units
Adaptation of control units
Reset service intervals
Reading vehicle data streams
Display of current system parameters
Check actuators
Reading and erasing vehicle fault codes

Benefits

36 brands of foreign trucks with the possibility of expanding the supported brands
indicators showing the status of the connection in real time
IP65 protection
shockproof case.

Powerful special functions:
Component Replacement, Cylinder Compression Test, Injector Cut Out Test, DPF Regeneration
Communicates with ABS & Transmissions from Bendix, Wabco and Allison
Tech to Tech remote communication function

Supported heavy duty vehicle list:

Europe:
MERCEDES BENZ
MAN
VOLVO
SCANIA
IVECO
DAF
RENAULT
U.S:
Freightliner
INTERNATIONAL
Kenworth
PETERBILT
STERLING
WESTERN STAR
MACK
DETROIT
CUMMINS
Asia:
HINO
FUSO
ISUZU
UD
HYUNDAI

Specifications:

Input voltage: 9-36V
Power: ≤3.0W
Working temperature: -10℃~55℃
Communication: USB/Bluetooth/Wi-Fi
CPU: 120MHz
Size: 204X110X45 mm
